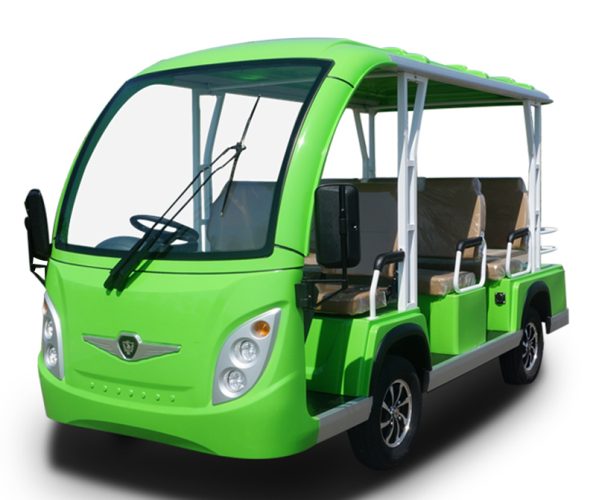

| 8 Seater Electric Sightseeing Bus | ||
| Model | A8 | |
| System | 72V /7.5KW AC system | |
| Key Components | ||
| Battery | Huge capacity deep cycle lead-acid battery 6V/piece 12 pieces,230Ah | |
| Motor | 7.5 KW AC motor | |
| Controller | Controller AC 400A | |
| Charger | 72V/30A, Charging time 8 to 10 hours | |
| Vehicle standard | 2014/30/EU (Standard for electromagnetic compatibility), | |
| 2006/42/EC (Standard for machinery) | ||
| Performance | ||
| Passenger capacity | 8 | |
| Range (loaded) based on flat road at a speed of 20km/h | 100-120 km | |
| Max. speed | 30km/h | |
| Minimum turning radius (m) | 5m | |
| Max. climbing ability (loaded) | 15% | |
| Curb weight | 1140Kg | |
| Load Capacity | 1780Kg | |
| Dimensions | ||
| Overall dimensions:LWH (mm) | 3850×1510×2180mm | |
| Min. ground clearance (mm) | 150mm | |
| Wheelbase (mm) | 2000mm | |
| Wheel tread(mm) | front 1220mm/ rear 1200mm | |
| Body and Frame | ||
| Frame | All aluminum frame | |
| Body | Moulded injection plastic PP | |
| Roof | Injection moulded modeling design separable replacement | |
| Seats | PU and artificial leather with seat belt, adjustable and reclines | |
| Tires | 155R12C | |
| Aluminum hub wheel | ||
| EPS | Electric Power Steeing is equipped | |
| Chassis | High strength structural steel | |
| Steering | Gear steering+ auto backlash compensation | |
| Braking System | Front disk +rear drum ,double circuit hydraulic brake+ hand brake | |
| Front Axle | Mcpherson independent suspension Spiral spring + cylinder hydraulic shock absorption | |
| Rear Axle | Strengthen 16.7 Integral rear axle, Non independent suspension, leaf spring +cylinder hydraulic shock absorption | |
| Detailed Configurations: (“S” stands for Standard configuration and “O” stands for Optional configuration） | ||
| Body And Frame | ||
| Windshield | Laminated glass with wiper | S |
| Combined odometer (volt meter, ammeter, tachometer, storage box and cup holder) | S | |
| Reviewer mirror outside | S | |
| Dashboard | ||
| Radio with USB | S | |
| Combination Meter | S | |
| LED Front Light (lifetime 50000h) | S | |
| 9 inch LCD screen (including reverse camera) | ||
| Working Voltage | 12-14V | |
| Allowable voltage range | 10.8-16V | |
| Working curent | Max 15A | |
| Screen size | 9 inch | |
| Resolution | 1024*600 pixels | |
| Languages | English, Chiness, Spanish, Portuguese, Russian, Italian, German, French, Japanese, Polish… | |
| Connection | Bluetooth | |
